Loadbreak Fuse Cutout

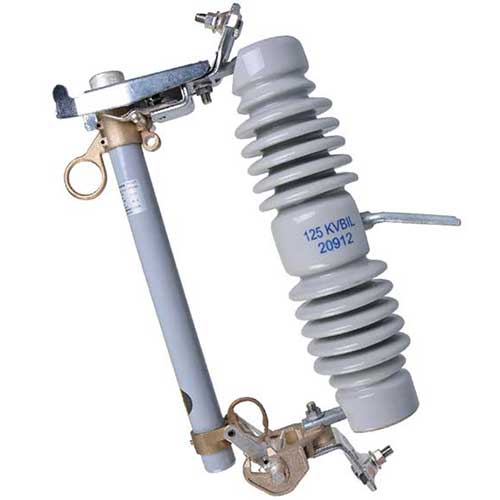

PD-1-15F Loadbreak Open Fuse Cutout

12(15)kv ~ 24(27)kV  100 ~200A

Outline
The PD-3-15F fuse except for distribution svstem as fuses outside still can be used as outdoor load suitches. Load open circuit by an independent  load open arcing, limits the gate and go free arc.
Routine operation of load with open the hook to fuse to normal.  The characteristics of load open circuit  principle can be realized by ordinary line workers operating stem load current ease off safePD.

 Excellent Fault-Current Breaking Capacity
The  ability to open the fault current can be 12.5kA/12kA  and 16kA/12kV(most can achieve 4times).

Applications

 Capacitor
PD-3-15F fuse offer current protection and capacitor electric equipment for capacitors and it also provides simple instructions,and  cheap open  capacitance.

Transformer Units Meet
PD-3-15F  type  fuses can  be used  to meet  the single~phase  and three-phase transformer exciting current.

 Breaking
PD-3-15Ffuse provides a way to maintain a simple method  to matain the single phase and three-phase, loop in line under the condition of the period of protection and in the accidental condition.

 Pole on The Lead
PD-3-15F  fuse provides  a suit in the  underground  cable with lead to  power feeder of  the circumstance  capacitance current solutions.

 According To Standard
PD-3-15F fuse,s design and test meet the following standard requirements:
NEMA SG-2-1986
ANSIC37.41.1994   ANSIC37.42-1989
GB  15166.3-1994   DL/T  640-1997

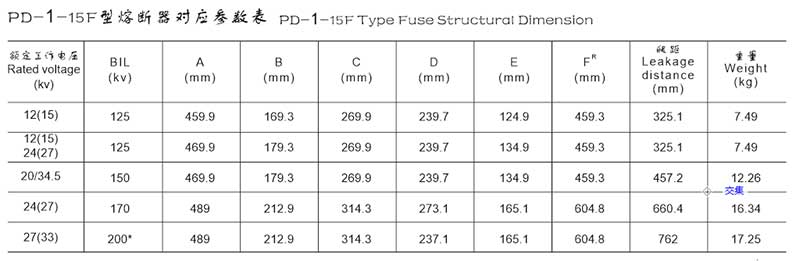

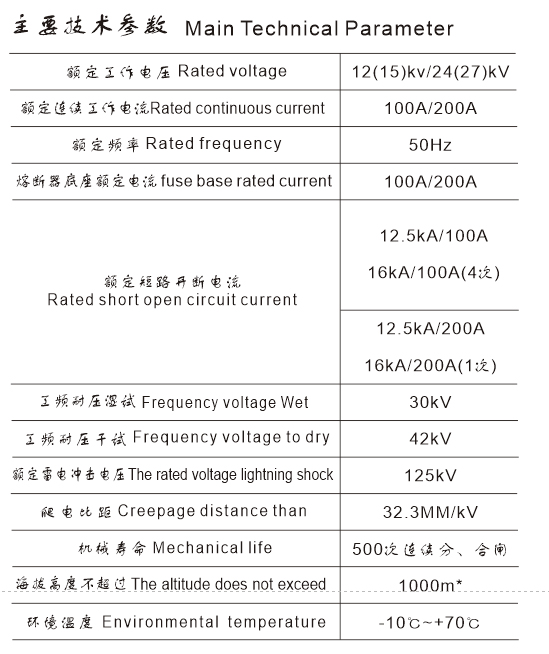

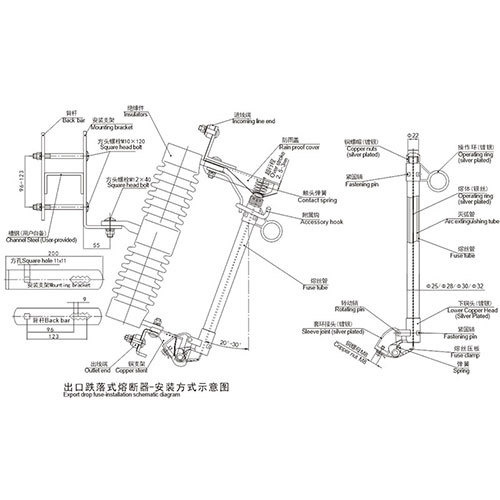

PD-3-15F Type Fuse Structure And Composition Of Its Characteristics

 Melt tube Structure
The load melt of PD-3-15F fuse is weld pipes. Moistureproof.

Fuse Base

PD-3-15F series product base embedded mechanical structure and  insulator. Install metal  rod mechanism using  special binder materials and insulator together, can withstand short-circuit current open the electric power.

Advantage

Fuse tube  with no proof plastic,  deformation breaking capacity, resistance to ultraviolet radiation,  and long  lifetime; with excellent  electrical characteristics, dielectric  strength and excellent  mechanical rigidity, self-cleaning ability;Overall organization of the neutral good, easy, safe and reliable.

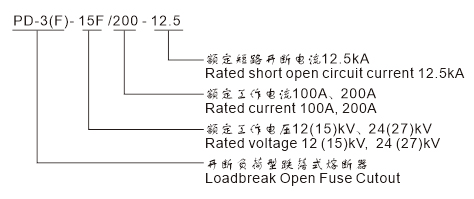

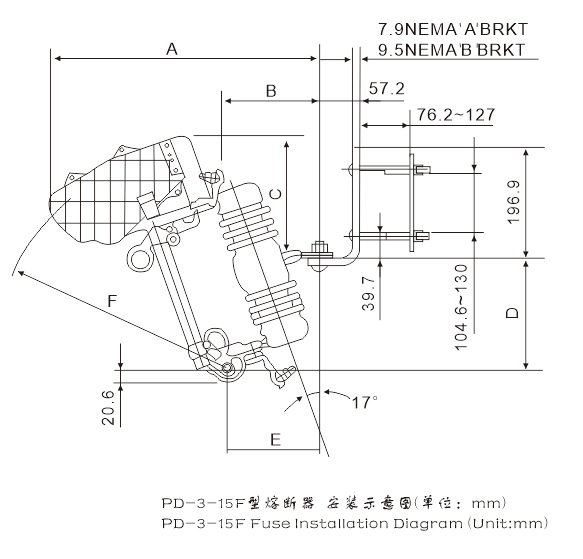

Model Description
