PD-3-15 Type Drop-out Fuse

Advantage
Fuse tube  with no proof plastic,  deformation breaking capacity, resistance to ultraviolet radiation,  and long  lifetime; with excellent  electrical characteristics, dielectric  strength and excellent  mechanical rigidity, self-cleaning ability;Overall organization of the neutral good, easy, safe and reliable.

Model Description

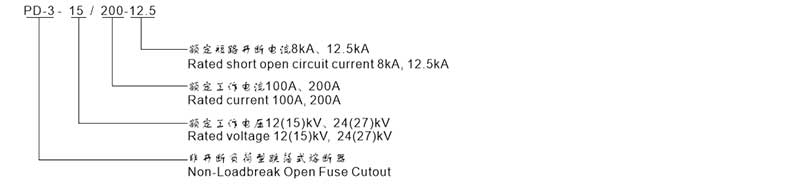

12(15)kv ～24(27)kv  100～200A

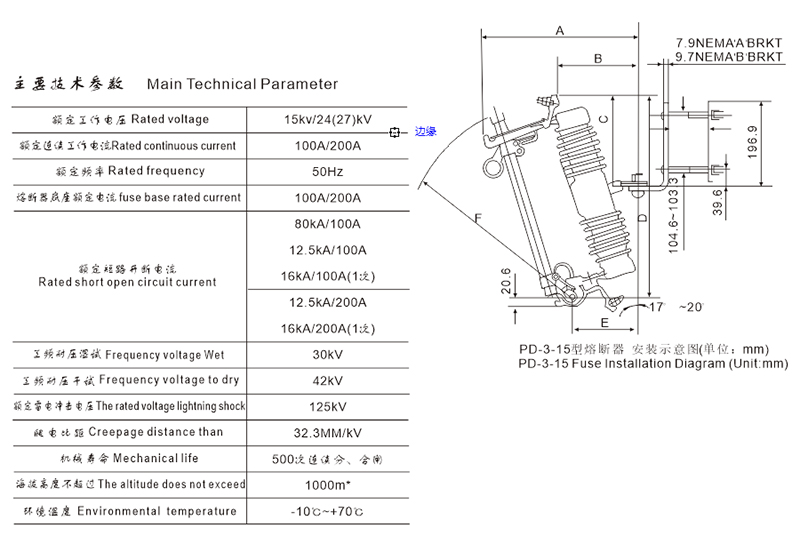

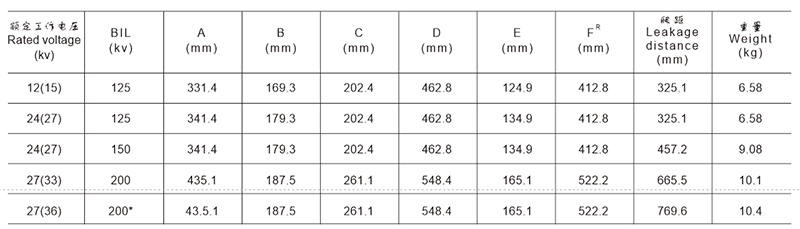

PD-3-15Type Fuse Structural Dimension

Outline
PD-3-15 type provides safe and reliable industrial over-current protection of long history.  It may be due  to the design of system load or malfunction caused demage condition of current protection equipment.
Besides, PD-3-15 type has good flexibility,  the application of  characterctics,  easy installation,  long service life and trouble-free operationetc.

 Excellent Fault-Current Breaking Capacity
The ability to open the fault current can be 8kA/12kA，12.5kA/12kV and 16kA/12kV(most can achieve 4times).

Applications

Weld parts will accommodate 100A load current 6A~100A fuse.200A weld parts  will accommodates load current100A-200A fuse. In particular, the right thing specifications and types of fuse , choice is to carry with continuous load  current  protection,  equipment and  other equipments of over-current protection with changes.Protection device type include circuit breaker, electricity and other fuse and coincide with cable routes.
PD-3-15 type offers a rarity of fault current points,through the use of discharging cap or fusing thing to expand the flexibility of cap. 100A commentate pressure bonnet designs 13780kPa under pressure to 200A discharging exhaust, 8957kPa designed cap exhaust pressure, Discharging exhaust pressure cap to made it more effective from ionized gas spewed fuse tube and greatPD improved the ability to break points, and its use in extended bonnet fusing a single injection allocation request,fusing thing can be expanded in the lower melting element, thereby reducing the position of the canal,the pressure to melt pipes have higher points cut capacity.

Standard
PD-3-15 type design and test meet the following standard requirements:
NEMASG-2-1986
ANSIC37.41.1994        ANSIC37-42-1989
GB  15166.3-1994        DL/T  640-1997

The Structure And The Advantages

 Melt tube Structure
PD-3-15 Fuse take made of Fiberglass, Damp-proof & Corrosion-proof.

 Fuse Base
PD-3-15F series product base embedded mechanical structure and  insulator. Install metal  rod mechanism using  special binder materials and insulator together, can withstand short-circuit current open the electric power.
