ZW-C1-12 series of outdoor high voltage intelligent vacuum circuit breaker

SUMMARY

ZW□C1-12 series of outdoor high voltage intelligent vacuum circuit breaker (hereinafter referred to as the circuit breaker) is three-phase AC 50Hz, rated voltage 12KV outdoor high voltage switch equipment.
ZW□C1-12 series of outdoor high voltage intelligent vacuum circuit breaker is a new type of Outdoor Switchgear developed by our company. This series of vacuum circuit breaker with inrush current, over-current, overcurrent protection, small current grounding protection, voltage protection function, remote control, remote control can be divided for the closing control, combination of key remote control can prevent misoperation. The control module uses the most excellent micro controller, which has the characteristics of high precision, high stability, strong anti-interference ability, low internal power consumption and so on. According to the user's requirements, can be combined with the corresponding controller to form an AC high voltage vacuum automatic coincidence device, automatic segmentation device, operating power supply by the built-in voltage transformer, is the ideal equipment to achieve distribution network automation.

Using Environmental Conditions
1, Ambient air temperature: upper limit of +40℃, lower -30℃;
2, the elevation is not more than 2000m;
3, the wind pressure is not more than 700Pa (corresponding to the wind speed 34m/s);
4, the earthquake intensity is not more than 8 degrees;
5, Pollution level: grade IV;
6, the maximum daily temperature difference: no more than 25;
7, relative humidity: daily average of not more than 95%, the average of not more than 90%;
8, non flammable, explosive risk, chemical corrosion and violent vibration place.

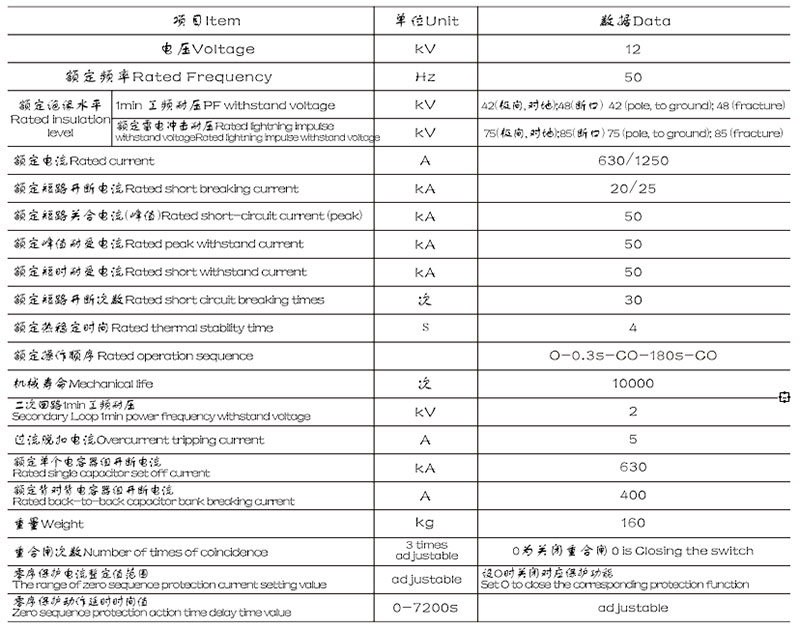

MAIN TECHNICAL PARAMETERS

Order notice
1, product name, model, rated current, rated voltage, rated breaking current;
2, rated operating voltage and energy storage motor rated voltage;
3, the current ratio and current transformer accuracy;
4, the box shell material and color;
5, for the remote function, submitted to the communication network category, select the appropriate interface;
6, if there are other special requirements, when ordering.
