ZW-Q-12 series dual power automatic transfer outdoor vacuum circuit breaker

概述SUMMARY

ZW□Q-12系列户外双电源自动转换真空断路器在常用电源发生故障时，切换装置可以完成与设备电源的自动切换，保证可靠性和安全性。也可根据负载的需要进行两路电源之间的选择、切换，产品具有过载、短路保护功能且进行了互锁设计。特别适用于不允许断电的重要场所，作为保证连续供电的重要电气控制装置，是与高压真空断路器配套的自投自复型双路电源自动切换装置。为新一代设计新颖、性能完善、安全可靠、自动化程度高、使用范围广的双路电源自动切换产品。
产品广泛使用于油田、矿山10KV配电线路，工矿业12KV线路。
ZW□Q-12 series dual power automatic transfer outdoor vacuum circuit breaker fault occurred in the normal power supply, switching device can complete automatic switching equipment and power supply, ensure the safety and reliability of. According to the need of load, the choice and switching between two power supply can be carried out, the product has the function of overload and short circuit protection, and the design of interlocking is carried out. The automatic switching device, which is used to ensure continuous power supply, is an important electric control device which can not be used for power outages, and is a self switching and dual power automatic switching device matched with a high voltage vacuum circuit breaker. The new generation of innovative design, performance, safety, reliability, high degree of automation, the use of a wide range of dual power automatic switching products.Products are widely used in oil field, mine 10KV power distribution lines, industrial and mining 12KV line.

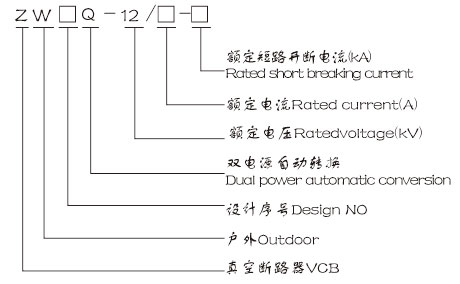

MODEL & IMPLICATIONS
