ZW32L-12 series outdoor high voltage zero sequence intelligent vacuum circuit breaker

SUMMARY

ZW32L-12 series outdoor high voltage zero sequence intelligent vacuum circuit breaker (hereinafter referred to as zero sequence intelligent circuit breaker) for rated voltage 12KV, three-phase AC 50Hz outdoor power distribution equipment. The load current, overload current and short circuit current are mainly used for opening and closing the electronic system. Used for protection and control of substation and industrial and mining enterprises as well as frequent operation of rural power grid. Can also be used as the power grid of the subsection switch, the installation of the controller, can realize the distribution network automation.

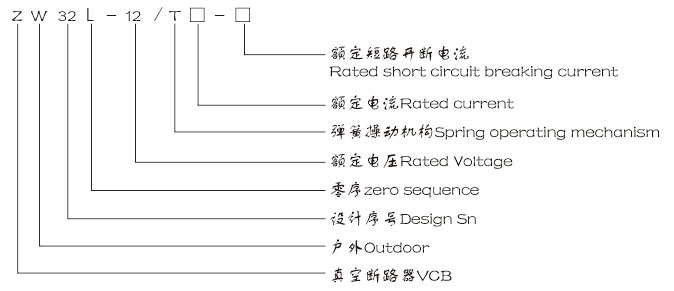

MODEL & IMPLICATIONS
